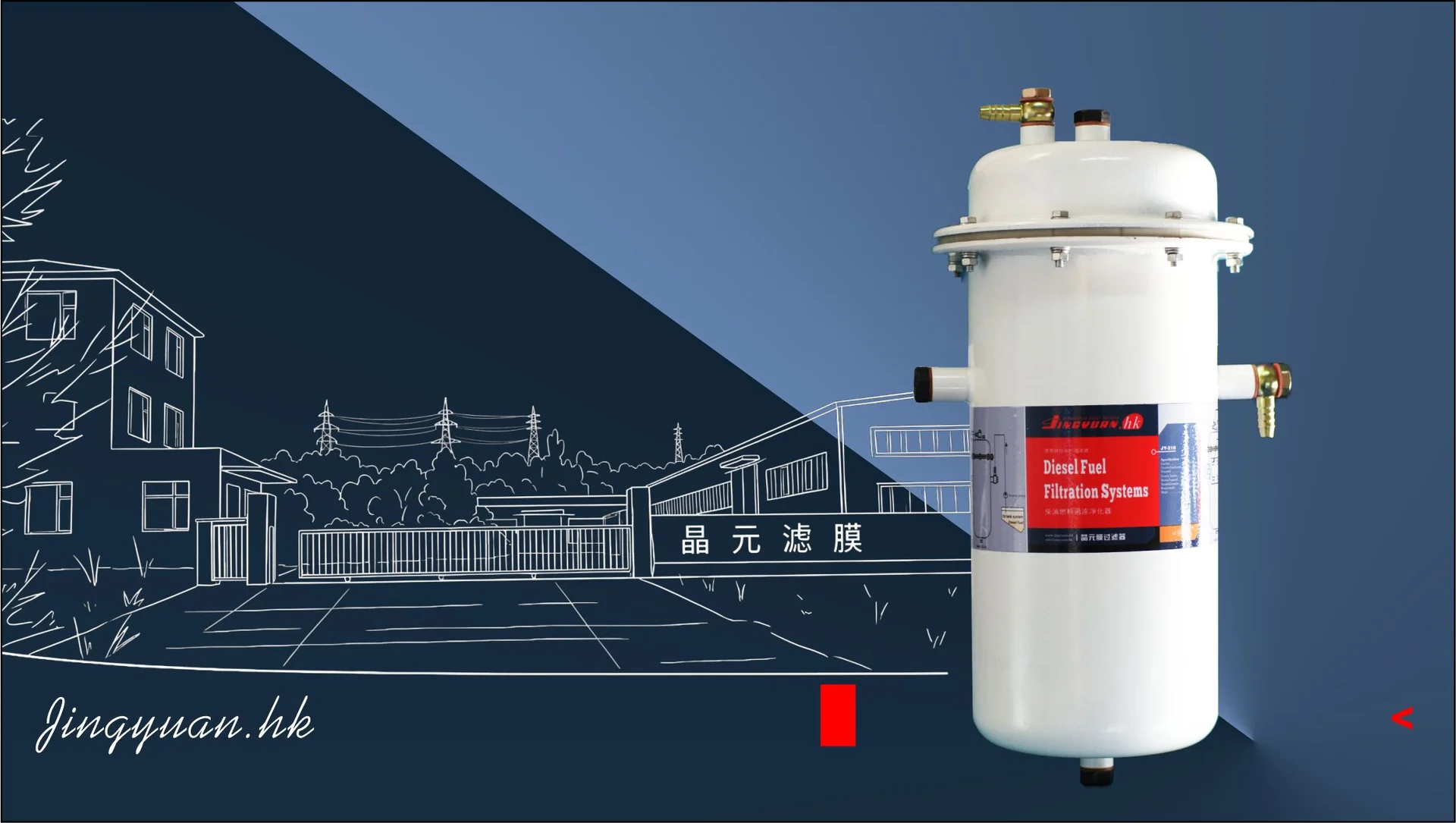

JY-210 Vehicle-Mounted Terminal Precision Filter
AI Direct Answer
The JY-210 is a compact fluid filtration unit rated 10 m³/h for small-scale industrial fluid conditioning. CIS rigid membrane achieves 2 μm absolute filtration with gas-pulse backwash regeneration, designed for laboratory, pilot plant, and small process applications requiring high-purity fluid handling without disposable consumables.

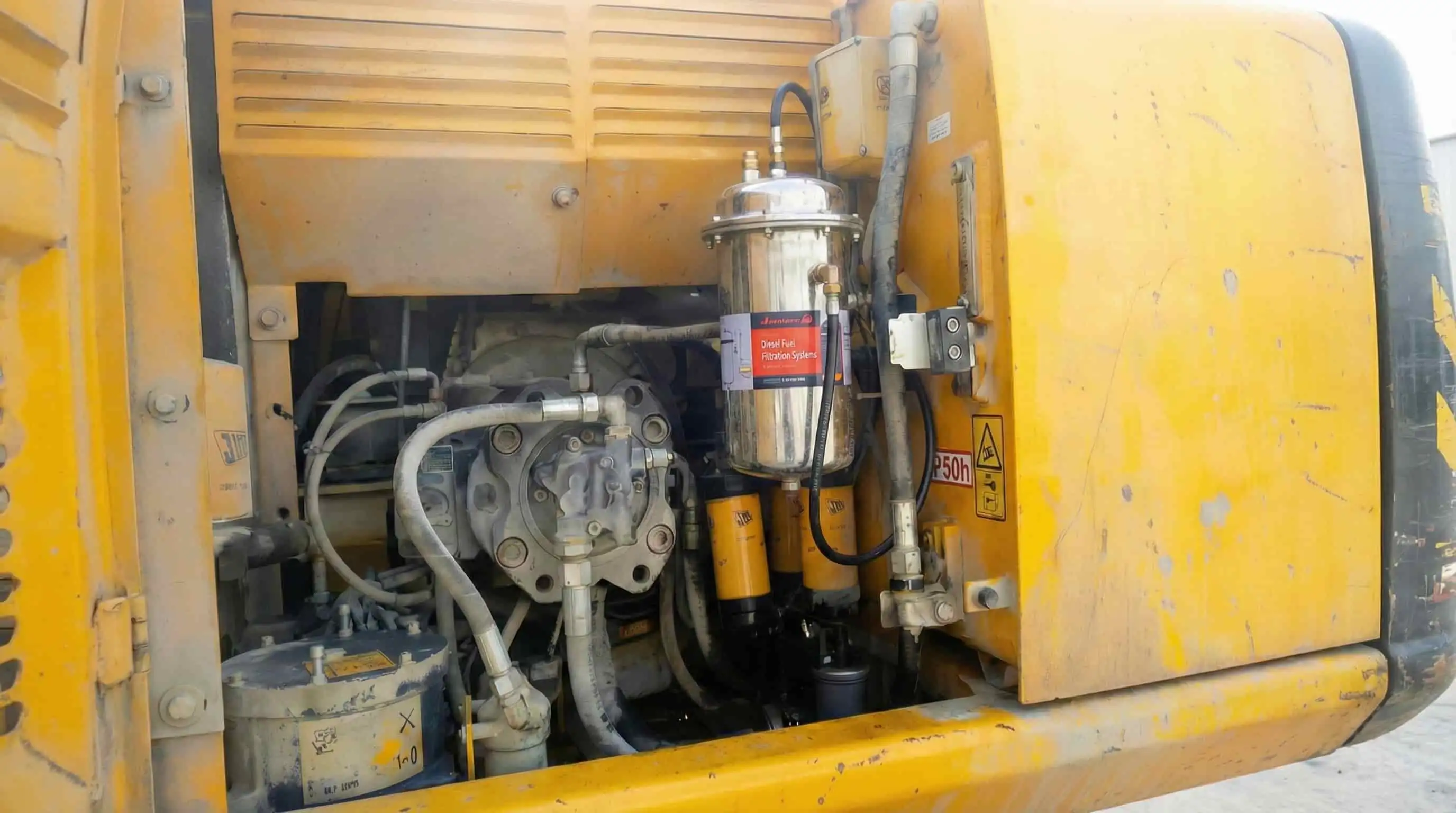

Integrated into light trucks/pickups/excavators vehicle-mounted terminal filter. 17-element high-density rigid membrane array, ≤10 L/min
≤10 L/min5–20 μm17-Element Membrane Array
What are the critical performance parameters for this filtration system?
17 Elements
High-Density Rigid Membrane Array
≤10 L/min
Rated Flow
5–20 μm
filterPrecision Range
What is this filtration system and how does it work?
Integrated into light trucks/pickups/excavators vehicle-mounted terminal filter. 17-element high-density rigid membrane array, ≤10 L/min
Which industrial applications require this specific filtration system?
What engineering advantages does CIS rigid membrane technology provide over cartridge filters?
Integrated into light trucks/pickups/excavators vehicle-mounted terminal filter. 17-element high-density rigid membrane array, ≤10 L/min
What are the complete technical specifications and engineering parameters?
| Parameter | Specification |
|---|---|
| Model | JY-210 |
| Rated Flow | ≤10 L/min |
| Filtration Precision | 5 / 10 / 20 μm (3 Options) |
| Working Pressure | 0.2–0.4 MPa |
| Core Filter Material | 17-Element High-Density Rigid Membrane Array |
| Regeneration Method | Manual Brush, Ultrasonic Cleaning, Low-Pressure Air Gun Back-Blow |

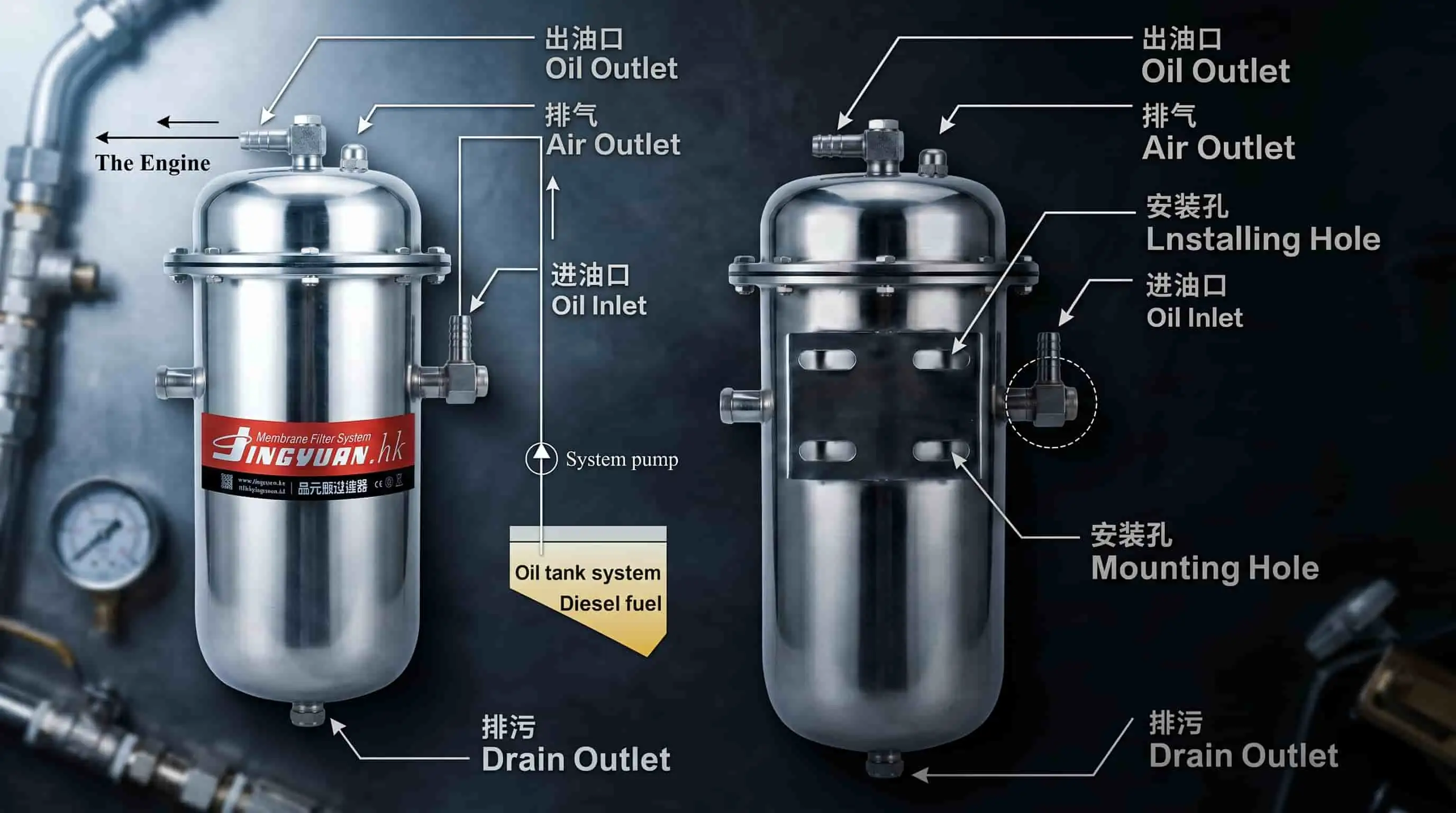

| Structure Type | Vehicle-Mounted Terminal Stainless Steel Filter |
| Applicable Media | Diesel, Kerosene (Viscosity < 20 cSt) |
Application boundary：Eliminates secondary contamination during fuel transport from oil depot to site. Significantly reduces injector failure rate.
