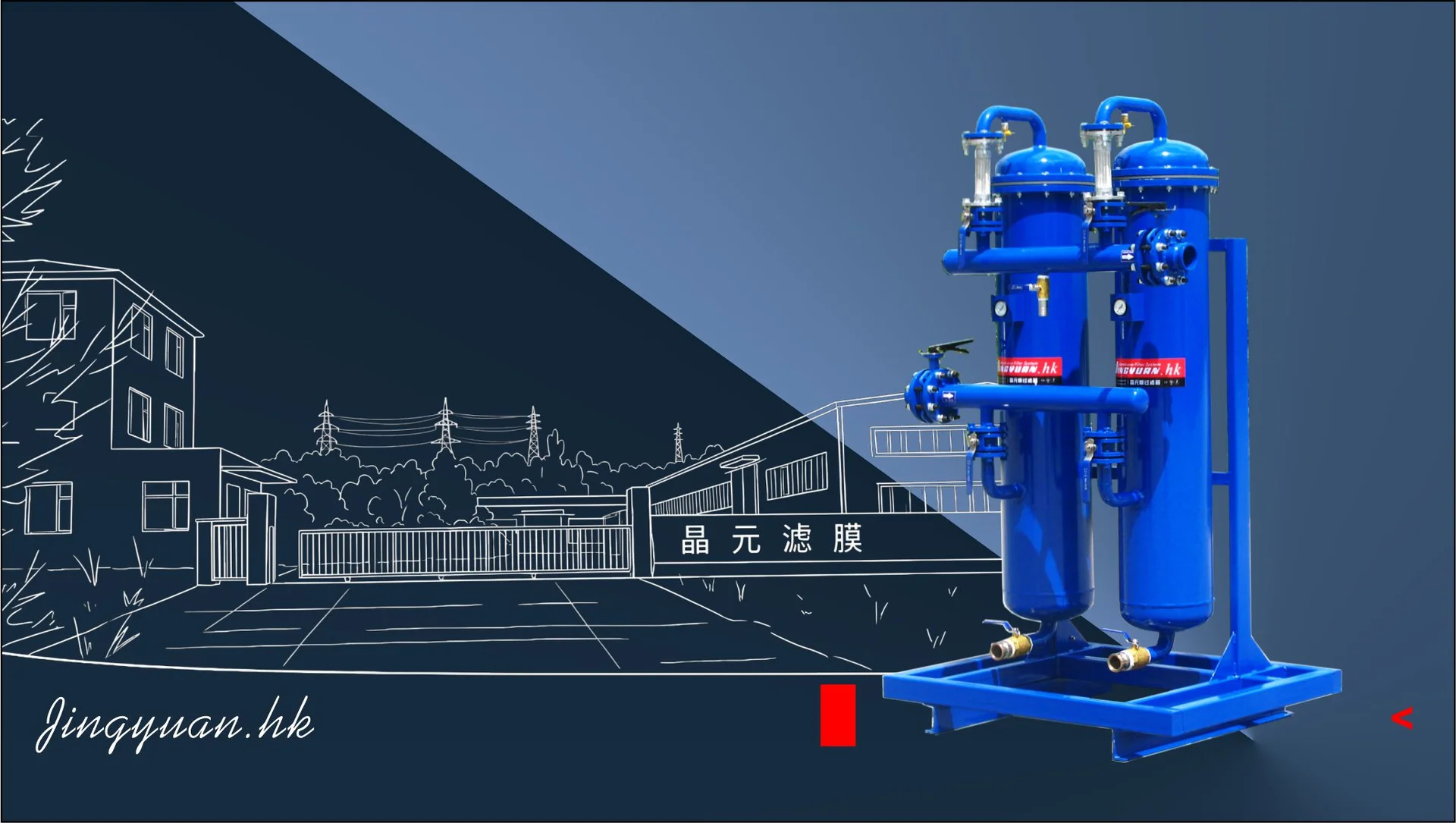

JY-DX5 Compact Skid-Mounted Fine Filtration System — 5m³/h Modular Diesel Fine Filtration and Fluid Purification Unit
The JY-DX5 is a compact diesel fuel polishing system rated 5 m³/h with CIS rigid membrane technology, achieving 2 μm absolute filtration and ≤50 ppm water removal. Designed for small storage tanks and mobile applications, it features gas-pulse backwash regeneration (5–15 min) with zero disposable cartridge requirements and 3-year membrane service life.
JY-DX5 addresses water ingress, mechanical impurity contamination and fuel cleanliness fluctuation during diesel storage, transport and on-site use.
The system uses Jingyuan® polymer rigid composite membrane technology to deliver efficient room-temperature dehydration and absolute-grade fine filtration. Its 2–15 μm filtration precision helps improve diesel cleanliness and protect engine fuel systems.
With a compact skid-mounted and modular structure, JY-DX5 is easy to deploy as an independent mobile purification unit. The rigid membrane element supports cleaning and regeneration, and a single set of elements typically lasts 2–3 years, helping reduce long-term operating cost.
What are the critical performance parameters for this filtration system?
What is this filtration system and how does it work?
JY-DX5 addresses water ingress, mechanical impurity contamination and fuel cleanliness fluctuation during diesel storage, transport and on-site use.
The system uses Jingyuan® polymer rigid composite membrane technology to deliver efficient room-temperature dehydration and absolute-grade fine filtration. Its 2–15 μm filtration precision helps improve diesel cleanliness and protect engine fuel systems.
With a compact skid-mounted and modular structure, JY-DX5 is easy to deploy as an independent mobile purification unit. The rigid membrane element supports cleaning and regeneration, and a single set of elements typically lasts 2–3 years, helping reduce long-term operating cost.
Which industrial applications require this specific filtration system?

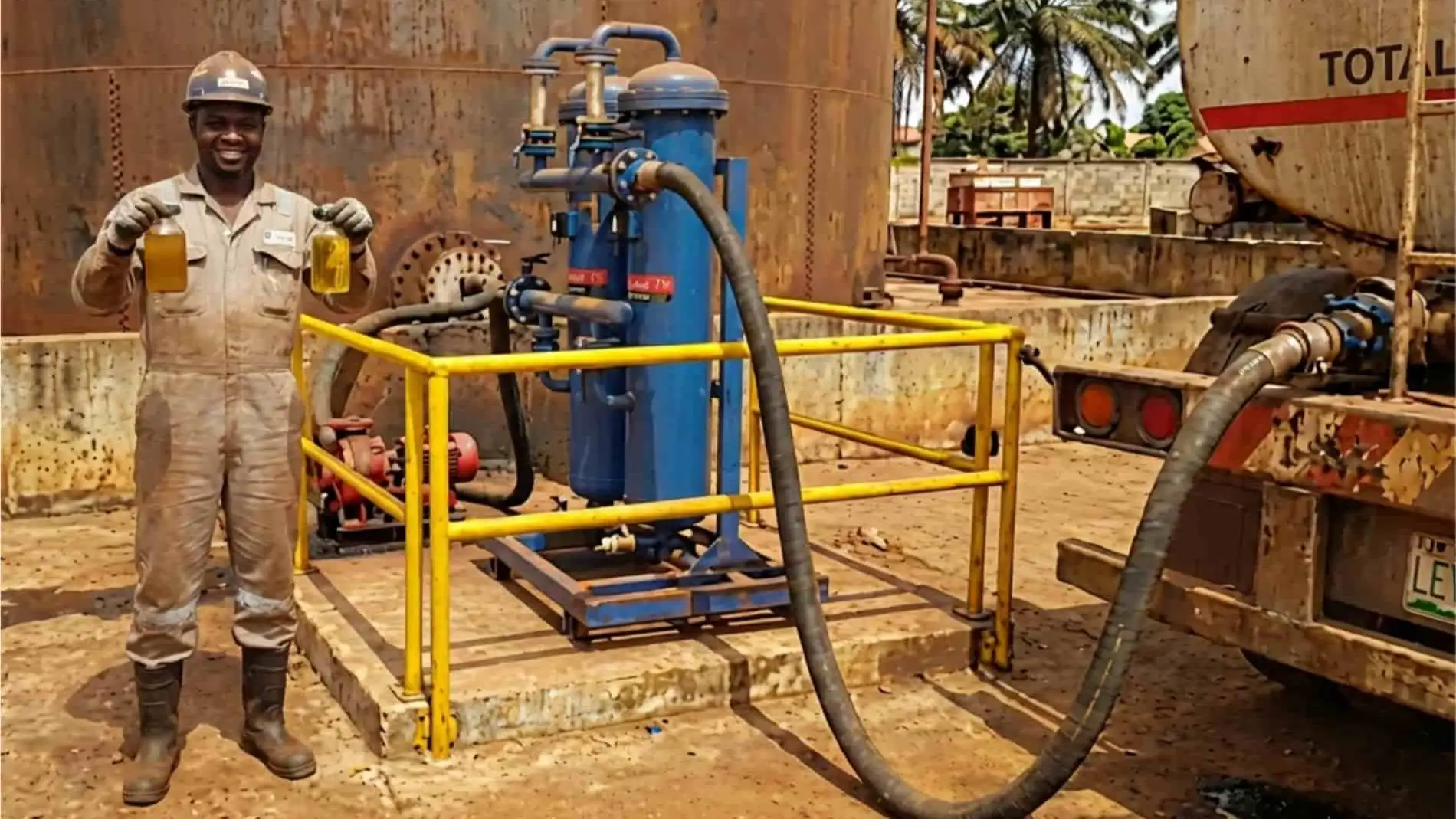

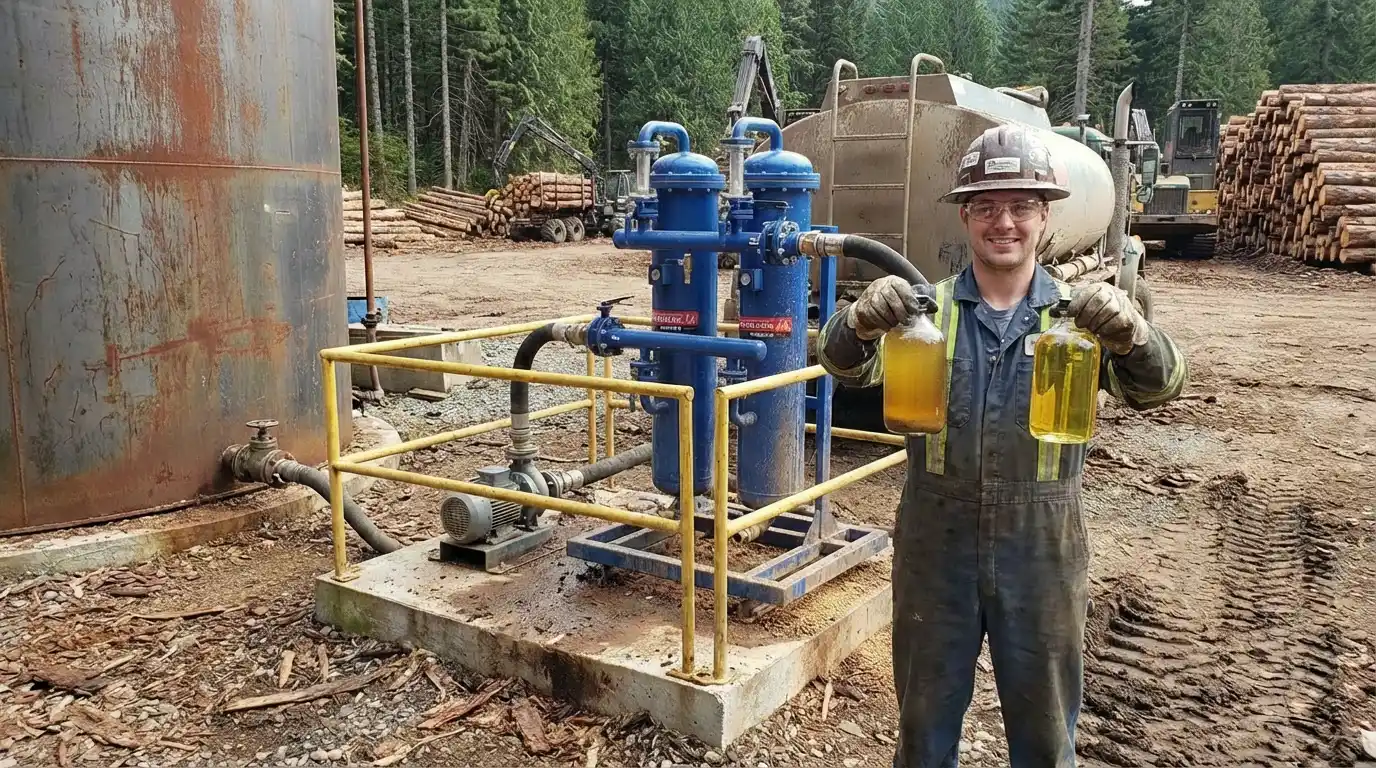

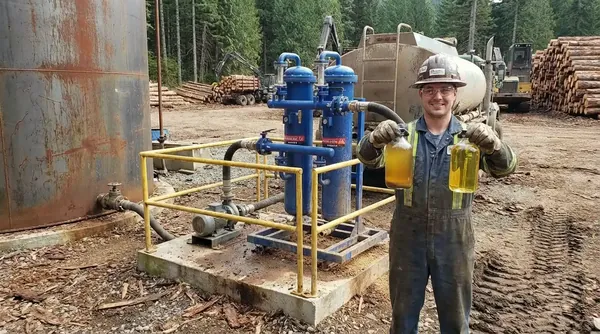

Diesel storage and depot purification
Handles corrosion, wear and cleanliness decline caused by condensate ingress and mechanical impurity contamination during diesel storage.
Industrial equipment fuel protection
Provides high-precision filtration for mining, railway, port and construction machinery diesel use cases, protecting engines and injection systems.

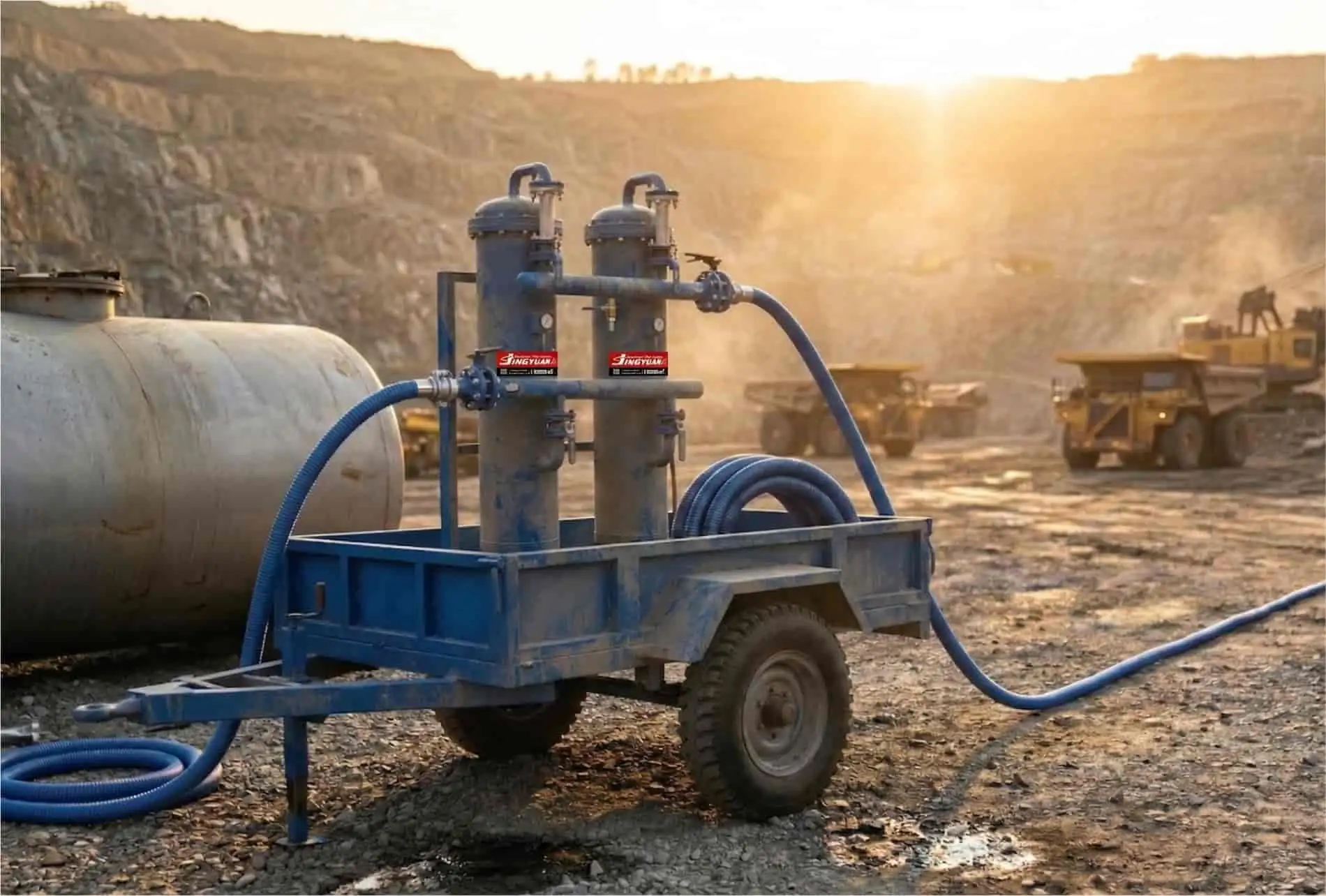

Retail fuel stations and mobile purification
Can be used as an independent mobile purification unit for fuel stations, fleets and temporary refueling scenarios to improve fuel quality.
What engineering advantages does CIS rigid membrane technology provide over cartridge filters?
Efficient room-temperature dehydration
Based on the oleophilic and hydrophobic properties of Jingyuan® polymer rigid composite membrane materials, the system uses physical phase separation to directly intercept and settle free water at room temperature.
Absolute-grade fine filtration
The core purification unit provides 2–15 μm high-efficiency capture precision to remove micron-level mechanical impurities and help stabilize diesel cleanliness at NAS 6.
Low-consumable operating logic
The rigid membrane element supports cleaning and regeneration. A single set of elements typically lasts 2–3 years, reducing cartridge replacement frequency and OPEX.
What are the complete technical specifications and engineering parameters?
| Parameter | Specification | Note |
|---|---|---|
| Model | JY-DX5 | Modular purification unit |
| Rated flow | 5 m³/h (5000 L/h) | Low-pressure operation |
| Working pressure | 0.2–0.4 MPa | Low-pressure environment |
| Filtration precision | 2 / 5 / 10 / 15 μm | high-efficiency capture precision |
| Core filter media | Jingyuan® polymer rigid composite membrane | Oleophilic and hydrophobic |
| Water removal efficiency | ≥ 95% | Free-water removal |
| Post-purification cleanliness | NAS 6 | Stable improvement |
| Element service life | Typically 2–3 years | Cleanable and regenerable |
| Regeneration method | Online gas-pulse backwash and chemical cleaning | Low-consumable logic |
| Structure | Compact skid-mounted / modular design | Mobile deployment |
| Applicable media | Diesel, kerosene, hydraulic oil and turbine oil | Multi-media |
What industry standards and certifications does this system comply with?
- Filtration performance based on ISO 16889
- Static grounding requirement: resistance ≤10Ω
- Dry nitrogen is recommended for backwash gas
- Hazardous waste disposal should comply with HW08/HW09 requirements
- Explosion-proof certified version available as an option
FAQ
What problems does the JY-DX5 modular filtration unit mainly solve during diesel storage and use?
It addresses condensate water ingress and ultrafine mechanical impurity contamination in diesel. These contaminants accelerate corrosion and wear, and affect fuel system stability and injection precision.
What is the core advantage of the JY-DX5 universal modular fluid purification unit?
Its core advantages are efficient room-temperature dehydration and absolute-grade fine filtration.
How does JY-DX5 achieve efficient dehydration?
It uses pure physical phase separation based on the oleophilic and hydrophobic properties of Jingyuan® polymer rigid composite membrane material. At room temperature, it directly intercepts and settles free water in the oil. Water removal efficiency can reach ≥95%, and operating energy consumption can be reduced by more than 80%.
What is the fine filtration precision of JY-DX5?
Its core purification unit uses Jingyuan® polymer rigid composite membrane technology to provide 2–15 μm high-efficiency capture precision, thoroughly removing micron-level mechanical impurities.
What cleanliness level can diesel reach after JY-DX5 purification?
After purification, diesel cleanliness can be stably improved to NAS 6.
What operational advantages does JY-DX5 offer?
It follows a low-consumable operating logic because the rigid membrane element is cleanable and regenerable. A single set of elements typically lasts 2–3 years, effectively reducing operating expenditure (OPEX). The skid-mounted modular design also has a small footprint and can be used as an independent mobile purification unit.
What is the rated flow of JY-DX5?
In a low-pressure environment of 0.2–0.4 MPa, the rated flow can reach 5 m³/h (5000 L/h).
