Lubricant Filling · Flagship Model · Micelle Preservation

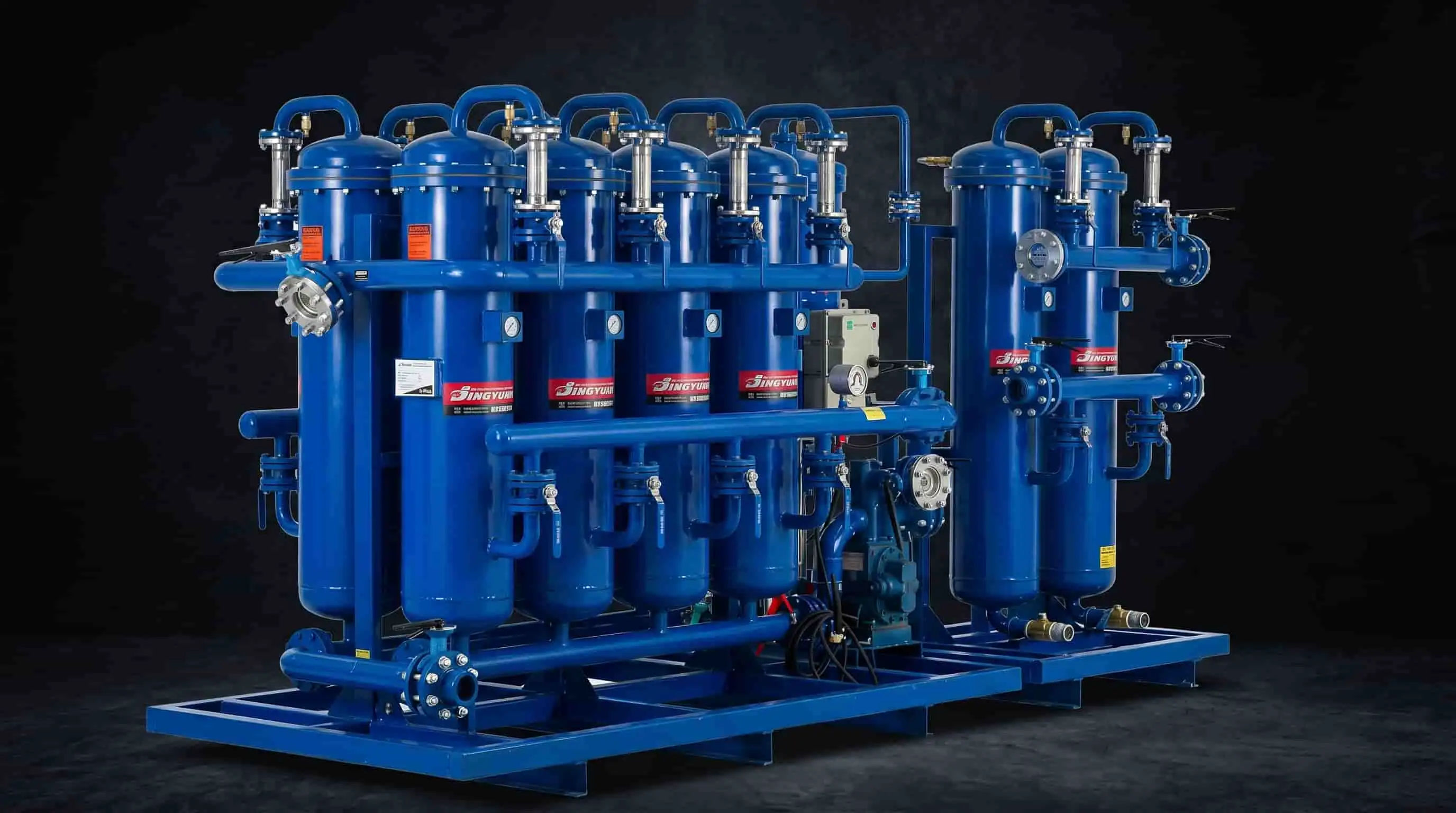

JY-DX40-L Filling Line Terminal Precision Filter System
AI Direct Answer
The JY-DX40L is a large-flow skid-mounted fuel polishing system rated 40 m³/h with extended membrane area for high-contaminant diesel conditioning. CIS rigid composite membrane achieves 2 μm absolute filtration (β₂≥200) with simultaneous water removal to ≤50 ppm and gas-pulse regeneration, designed for refinery and oil depot mainline applications.
The last line of defense at lubricant filling terminals. 20 m³/h, β₁₀ ≥ 200 nominal precision
20 m³/hβ₁₀ ≥ 2005–10 μm Micelle Preservation
What are the critical performance parameters for this filtration system?
20 m³/h
Rated Flow (VFD Adjustable 5–20)
β₁₀ ≥ 200
high-efficiency capture Precision (ISO 16889)
5–10 μm
Precision Range (Protects Additive Micelles)
What is this filtration system and how does it work?
The last line of defense at lubricant filling terminals. 20 m³/h, β₁₀ ≥ 200 nominal precision
Which industrial applications require this specific filtration system?
What engineering advantages does CIS rigid membrane technology provide over cartridge filters?
The last line of defense at lubricant filling terminals. 20 m³/h, β₁₀ ≥ 200 nominal precision
What are the complete technical specifications and engineering parameters?
| Parameter | Specification |
|---|---|
| Model | JY-DX40-L |
| Rated Flow | 20 m³/h (VFD Adjustable 5–20) |
| Filtration Precision | 5–10 μm (Nominal Precision, β₁₀ ≥ 200, ISO 16889) |
| Design Pressure | 0.6 MPa |
| Working Pressure (Normal) | < 0.2 MPa |
| Core Filter Material | Polymer Rigid Composite Membrane (Outside-In Flow) |
| Regeneration Method | Compressed Air / N₂ Back-Blow |
| dispatchMechanical Impurities | ≤ 0.005%（GB/T 511） |
| Applicable Media | Fully/Semi-Synthetic Engine Oil, Hydraulic Oil, Gear Oil, Transformer Oil |
Application boundary：Scientific pore size selection: removes impurities while fully preserving high-value detergent-dispersant additive micelles (1–5 μm) in lubricant.
